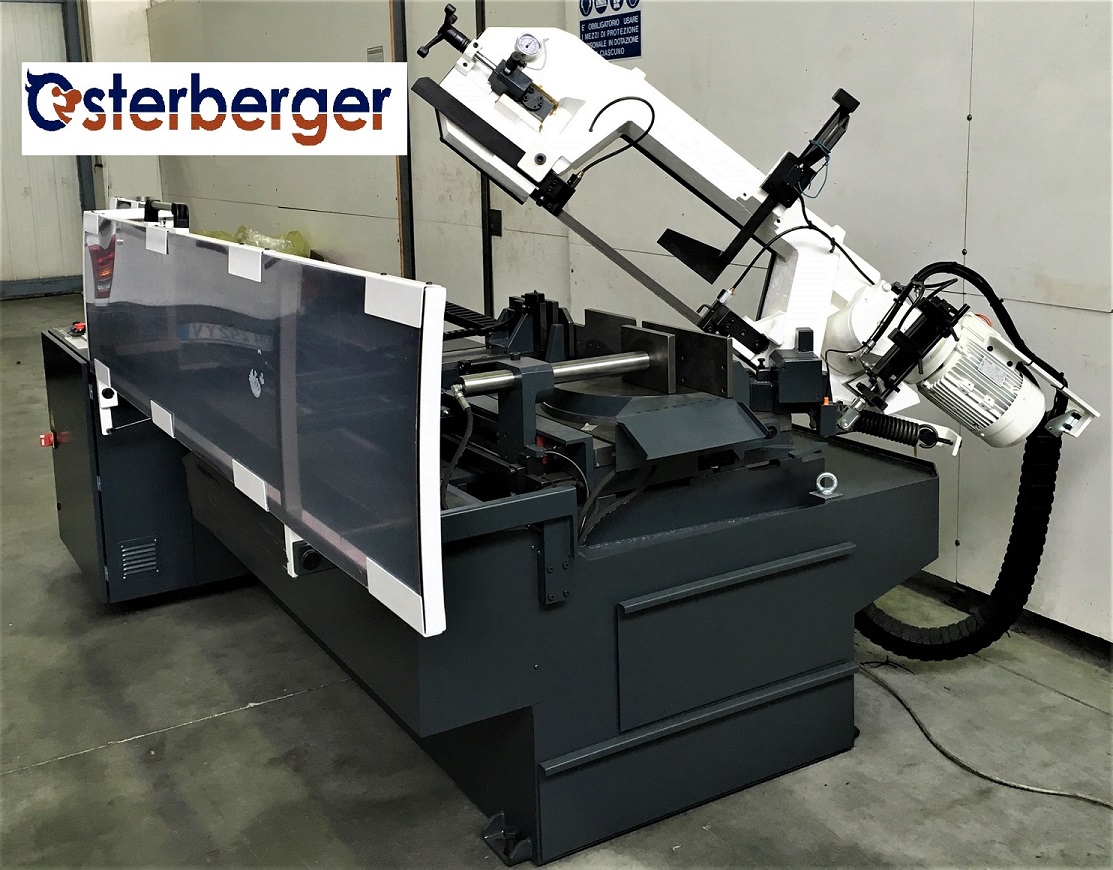

DGB260CNC – CNC – gesteuerte Doppelgehrungs- präzisions- Bandsägemaschine von sehr hoher Qualität, eine schwere vibrationsabsorbierende Gusskonstruktion (Sägerahmen + Maschinentisch) – konzipiert für den anspruchsvollen Metallbau dem ein rationeller und präziser Zuschnitt wichtig ist, Gehrungs- Verstellbereich stufenlos – 60° / + 45°, Schnittbereich 90° - 230 x 230 mm oder Ø 260 mm / 45° - 200 x 200 mm / oder Ø 200 mm 60° - 120 x 120 mm oder Ø 120 mm, Sägebandantriebsleistung 2,2 kW – Sägebandgeschwindigkeiten 10 bis 70 m/min stufenlos regelbar – Sägebandabmessungen 3.150 x 27 x 0,9 mm, größter Materialvorschub pro Hub 1.300 mm – Antrieb durch Kugelrollspindel, CNC –Steuerung mit Touchscreen und Farbgrafik – Software für das automatische Schieben und Ziehen des Profilstabes – extrem einfache Programmierung und Bedienung – Schnittlisten können als Excel Datei geladen werden, Abmessungen 3,1 x 2,2 m x H 1,3 m, Gewicht 1.450 kg.





DGB260CNC - Machine de scie à ruban de précision à double onglet contrôlée par CNC de très haute qualité, une construction en fonte absorbant les vibrations (châssis de scie + table de machine) - conçue pour les constructions métalliques exigeantes où une coupe rationnelle et précise est importante, plage de réglage d'onglet en continu - 60 ° / + 45 ° , Plage de coupe 90 ° - 230 x 230 mm ou Ø 260 mm / 45 ° - 200 x 200 mm / ou Ø 200 mm 60 ° - 120 x 120 mm ou Ø 120 mm, puissance d'entraînement de la bande de scie 2,2 kW - vitesses de bande de scie 10 à 70 m / min infiniment variable - dimensions de la bande de scie 3150 x 27 x 0,9 mm, plus grande avance de matériau par course 1300 mm - entraînement par vis à billes, commande CNC avec écran tactile et graphiques en couleur - logiciel pour pousser et tirer automatiquement la barre profilée - programmation et fonctionnement extrêmement simples - listes de coupe peut être chargé en fichier Excel, dimensions 3,1 x 2,2 mx H 1,3 m, poids 1.450 kg.







GB260CNC - Macchina per sega a nastro a doppia precisione di precisione controllata da CNC di altissima qualità, una costruzione in ghisa pesantemente assorbente (telaio della sega + tavolo macchina) - progettata per una costruzione in metallo impegnativa dove è importante un taglio razionale e preciso, campo di regolazione della troncatura continuo - 60 ° / + 45 ° , Campo di taglio 90 ° - 230 x 230 mm o Ø 260 mm / 45 ° - 200 x 200 mm / o Ø 200 mm 60 ° - 120 x 120 mm o Ø 120 mm, potenza di azionamento della lama della sega 2,2 kW - velocità della lama della sega da 10 a 70 m / min. infinitamente variabile - dimensioni del nastro della sega 3.150 x 27 x 0.9 mm, avanzamento del materiale più grande per corsa 1.300 mm - azionamento con vite a ricircolo di sfere, controllo CNC con touchscreen e grafica a colori - software per spingere e tirare automaticamente la barra del profilo - programmazione e funzionamento estremamente semplici - liste di taglio può essere caricato come file Excel, dimensioni 3,1 x 2,2 mx H 1,3 m, peso 1.450 kg.







DGB260CNC - very high quality CNC - controlled double mitre high precision band saw machine, a heavy vibration-absorbing cast construction (saw frame + machine table) - designed for demanding metal construction where rational and precise cutting is important, mitre adjustment range continuously - 60 ° / + 45 ° , Cutting range 90 ° - 230 x 230 mm or Ø 260 mm / 45 ° - 200 x 200 mm / or Ø 200 mm 60 ° - 120 x 120 mm or Ø 120 mm, saw band drive power 2,2 kW - saw band speeds 10 to 70 m / min infinitely variable - saw band dimensions 3,150 x 27 x 0.9 mm, largest material feed per stroke 1.300 mm - drive by ball screw, CNC control with touchscreen and colour graphics - software for automatic pushing and pulling of the profile bar - extremely simple programming and operation - cutting lists can be loaded as an Excel file, dimensions 3,1 x 2,2 mx H 1,3 m, weight 1.450 kg.
